CNC Machining Tolerances: What +0.002mm Really Means for YourParts

When you're sourcing custom CNC machined parts, one number often determines whether the part works- or fails: tolerance.

But here's the problem most buyers face: over-specifying tolerances wastes money, while under-specifying leads to failed assemblies. A recent industry report estimates that 30-50% of machining costscome from unnecessarily tight tolerances that add no functional value.

This guide covers everything you need to know about CNC machining tolerances in 2026 - from standard(0.1mm) to ultra-precision (0.002mm) so you can specify the right tolerance for every feature of yourpart, on every budget.

What Are CNC Machining Tolerances?

A CNC machining tolerance defines the allowable variation in a part's dimension. For example, if a shaft isdesigned to be 50mm in diameter with a tolerance of 0.05mm, the finished part can measure anywherebetween 49.95mm and 50.05mm and still pass inspection.

Tolerances are typically expressed in:

In CNC machining, tolerances are influenced by machine capability, tool condition, material properties,temperature, and operator skill.

Standard vs Precision Tolerance Levels

Standard Tolerances (+0.1mm to +0.05mm)

Best for: Non-critical features, general-purpose parts, prototypes

+0.1mm: Suitable for rough dimensions, clearance holes, cosmetic surfaces

+0.05mm: Standard for most CNC machining, press-fit references

Most CNC machine shops can hold 0.1mm without any special equipment. This is the "default" tolerance- cost-effective for approximately 80% of all machined parts.

Most CNC machine shops can hold +0.1mm withoutany special equipment. This is the "default" tolerance- cost-effective for approximately 80% of allmachined parts.

Precision Tolerances (+0.025mm to +0.01mm)

Best for: Functional mating surfaces, bearing fits,sealing surfaces

+0.025mm (25um): Tight industrial standard

+0.01mm (10um): High precision, requires qualitycontrol

Achieving 0.01mm typically adds 15-30% tomachining cost compared to standard tolerances, asit requires newer machines, quality cutting tools, andin-process inspection.

High Precision Tolerances (+0.005mm to+0.002mm)

Best for: Critical aerospace, semiconductor, and

medical components

+0.005mm (5um): Near-limits of conventionalCNC

+0.002mm (2um): Ultra-precision, requiresspecialized equipment

At this level, environmental factors become critical.Temperature fluctuations of just 1-2°C can causeenough thermal expansion in aluminum to push a partout of spec. This is why achieving 0.002mmrequires:

Temperature-controlled workshops (+/- 1°C)

High-precision CNC machines (5-axis,temperature-compensated)

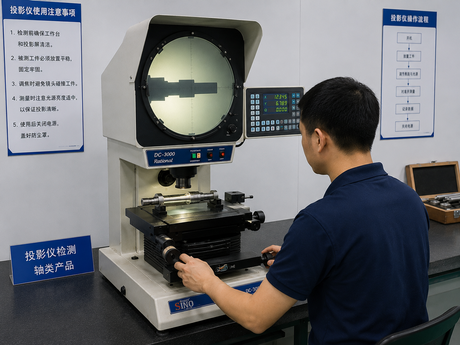

Advanced metrology (CMM, laser measurement)

Experienced machinists with GD&T training

CNC Machining Tolerances by Material

Different materials respond differently to machining forces, thermal expansion, and tool wear:

The Tolerance-Cost Relationship

This is the most important concept in CNC machining: tighter tolerances increase cost exponentially, notlinearly.

How Tolerance Affects Cost

Why Does Tight Tolerance Machining Cost More?

1. Machine time: Slower feed rates and multiple finishing passes

2. Tooling: Premium cutting tools with shorter lifespans

3. Inspection: CMM measurement adds time and equipment cost

4. Scrap rate: Higher probability of parts falling out of spec

5. Environment: Climate-controlled facilities

Tip: Only specify tight tolerances on critical features. Non-critical dimensions should use standardtolerances. This single practice can reduce your part cost by 20-40%.

How to Specify Tolerances on Your Engineering DrawingWhen sending a drawing for a CNC machining quote, follow these best practices:

1. Use a General Tolerance Block

Instead of specifying tolerances on every dimension, add a general tolerance note:

UNLESS OTHERWISE SPECIFIED:

±0.1mm for 1–30mm

±0.2mm for 30–120mm

±0.3mm for 120–400mm

±0.5mm for 400–1000mm

This simplifies your drawing and avoids unnecessary precision on non-critical dimensions.

2. Apply Critical Tolerances with GD&T

Geometric Dimensioning and Tolerancing (GD&T) defines not just size, but form, orientation, and location:

3. Reference ISO 2768 Standards

For general tolerances, most CNC machine shops follow ISO 2768:

Industry Standards for CNC Machining Tolerances

Different industries require different precision levels:

Aerospace (AS9100)

Typical Range: +0.005mm to +0.01mm

Key Requirements: Full traceability, material certifications, AS9100-compliant quality systemRonghang: Capable of aerospace-grade precision with full inspection reporting

Semiconductor

Typical Range: +0.002mm to 0.005mm

· Key Requirements: Ultra-clean processing, specialized material handling Ronghang: Precision machining for semiconductor accessories and components

Medical Devices (ISO 13485)

Typical Range: +0.005mm to +0.02mm

Key Requirements: Biocompatible materials, surface finish control, lot traceability

Automotive (IATF 16949)

Typical Range: +0.01mm to +0.05mm

Key Requirements: PPAP, SPC, high-volume consistency

General Industrial

Typical Range: +0.05mm to +0.1mm

Key Requirements: Cost-effective, reliable delivery

How to Choose the Right Tolerance for Your Project

Step 1: Classify Each Feature

Step 2: Ask Your Supplier

When requesting a custom CNC machining quote, always clarify:

1. What is your standard tolerance? (Most shops default to +0.1mm)

2. What is your tightest achievable tolerance?

3. Do you charge extra for each tight tolerance callout?

4. Can you provide a first article inspection report?

5. What inspection equipment do you use? (CMM, micrometer, surface tester)

Step 3: Consider Your Budget

A smart approach for prototype and low-volume production:

Prototype (1-10 pcs): Use standard tolerances unless fit is mission-criticalLow volume (10-100 pcs): Tighten only on functional surfaces Production (100+ pcs): Full GD&T with statistical process control

Why Ronghang Hardware for Precision CNC MachiningAt Ronghang Hardware, we specialize in precision CNC machining for demanding industries includingaerospace, semiconductor, medical devices, and automation.

Our Capabilities

Our Quality Promise

100% refund on unqualified parts

Penalty agreement for delayed delivery

Full inspection reports with material certifications

Free design optimization recommendations

We help engineers and procurement professionals achieve the right precision at the right cost deliveringhigh-quality CNC machined parts tailored to your exact specifications.

Frequently Asked Questions

Q: What is the standard tolerance for CNC machining?Standard CNC machining tolerance is typically 0.1mm (0.004"), which is suitable for approximately 80%of all machined parts. For precision applications, tolerances down to 0.01mm or 0.005mm are common.

Q: Can CNC machining achieve +0.001mm tolerance?Theoretically yes, but it requires specialized ultra-precision machines, temperature-controlledenvironments, and significantly higher cost. For practical applications, 0.002mm is considered ultra-precision for production CNC machining.

Q: How do tolerances affect CNC machining cost?

Tighter tolerances increase cost exponentially. Moving from 0.1mm to 0.01mm can double the cost, while0.002mm can cost 3-5x more than standard. Only specify tight tolerances on functionally critical features.

Q: What is the difference between standard and precision CNC machining?Standard CNC machining typically holds 0.1mm to 0.05mm tolerance using conventional machines.Precision CNC machining achieves 0.01mm or tighter using advanced equipment, temperature control,and rigorous inspection.

Q: What is ISO 2768 in CNC machining?

ISO 2768 is an international standard that defines general tolerances for linear and angular dimensions. Ithas three grades: fine (f), medium (m), and coarse (c). Most CNC machine shops default to ISO 2768-m.

Q: How do I verify if my CNC parts meet the specified tolerances?Request a First Article Inspection Report (FAIR) from your supplier. This document provides measurementsof every critical dimension. Reputable manufacturers like Ronghang provide CMM inspection reports witheach shipment.

Q: Should I specify tolerances on every dimension?No. Use a general tolerance block for non-critical dimensions and only specify tight tolerances onfunctional surfaces. This reduces drawing complexity and manufacturing cost.
